SKB 3RS-7U20-22B SKB 7U Static Shock Rack 20″ (51cm) Deep Rail to Rail
SKB Racks CasesSKB 3RS-7U20-22B SKB 7U Static Shock Rack 20″ (51cm) Deep Rail to Rail Details
Length mm | 609 |
Width mm | 482 |
Depth mm | 311 |
Overall Weight | 20.87 |
SKB 3RS-7U20-22B SKB 7U Static Shock Rack20″ (51cm) Deep Rail to Rail SKB’s SKB 3RS-7U20-22B 3RS Series Static Shock Rack Transp ...
SKB 3RS-7U20-22B
SKB 7U Static Shock Rack
20″ (51cm) Deep Rail to Rail
SKB’s SKB 3RS-7U20-22B 3RS Series Static Shock Rack Transport cases are available in 8 sizes: 3U, 4U, 5U, 6U, 7U, 9U, 11U, 14U. These Shock Racks are lightweight, shockproof, watertight, dustproof, heat and chemical resistant, and perfect for protecting, transporting your sensitive electronic equipment.

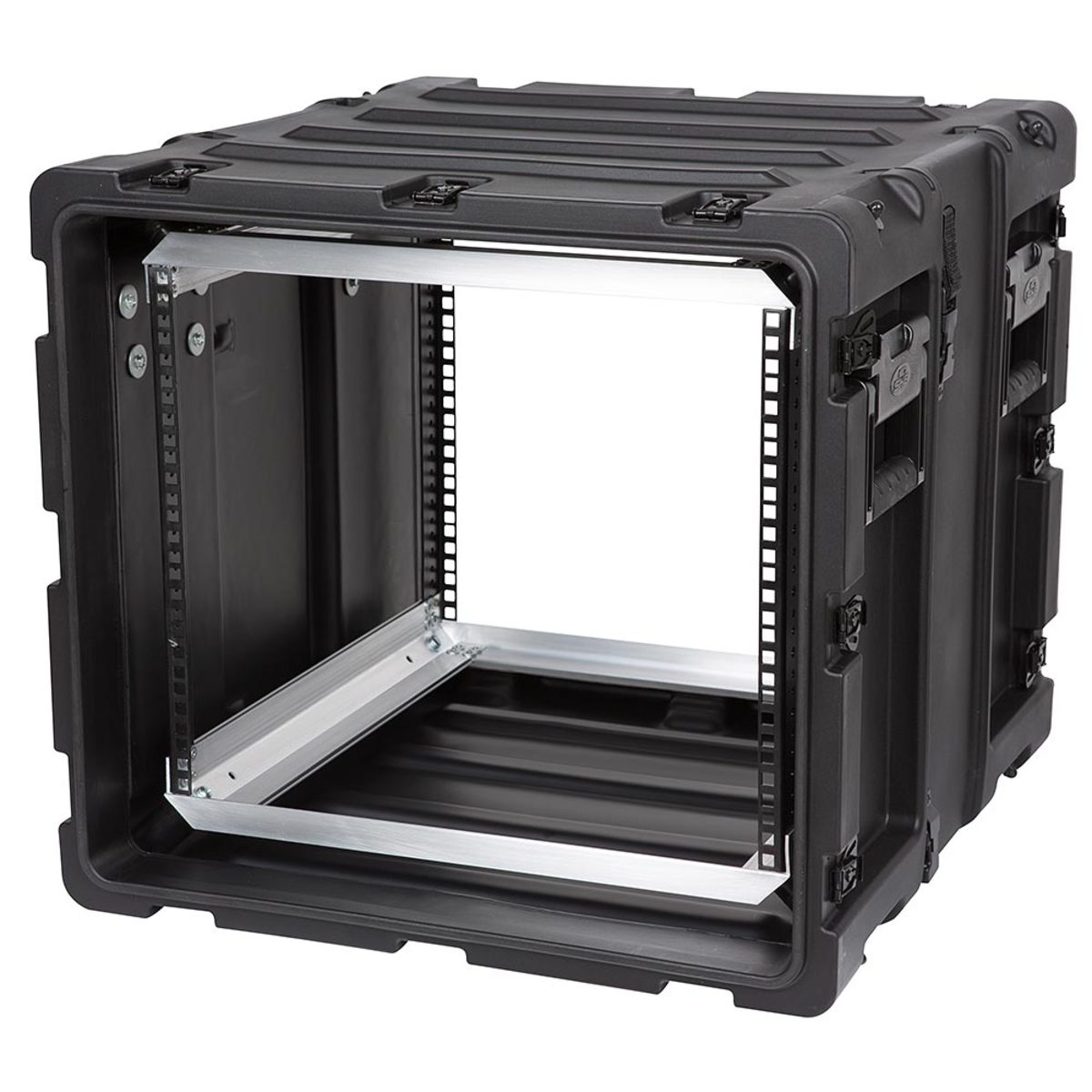

The inner rack chassis is built of high strength (but lightweight) aluminum alloy extrusions, with 11 gauge hot rolled carbon steel rack rails to meet EIA-310 standards. Shock and vibration mitigation is accomplished in the 3RS-7U20-22B, with eight (8) elastomeric isolators rated for a payload range of 40 lbs to 150 lbs, in a standard configuration (optional extended payload range of 160 lbs to 300 lbs can be accommodated as a special order option). The interior frame and shocks, provide adequate sway for ambient air circulation and heat dissipation.
3RS Series cases are molded of LMDP Linear Medium Density Polyethylene plastic that meets or exceeds MIL-STD 810G standards. Measuring 20″ deep from rail to rail with a standard 19″ rack width per ANSI/EIA-310-C specification, 3RS Shock Racks also feature square-hole rack rails, to accommodate either #10-32 US standard or 6mm International standard cage nuts, (supplied with the cases).
The rugged roto-molded shell ensures industry leading strength and impact resistance. The standard commercial off the shelf (COTS) case, comes with 2″ deep front and rear lids to accommodate rack gear that is longer than 20″. Molded-in stacking ribs and lugs, are designed to stack with all SKB 3RR and 3RS CASES, as well as competitive manufacturer cases, and feature black powder coated stainless steel hardware that is recessed for protection and 4 comfort grip spring loaded lift handles which allow for easy movement. An automatic pressure relief valve is another standard feature, along with gasket sealed lids, that include convenient lid hangers to store your lids when your equipment is in operation. Coupling straps are included for securing the racks together when stacked.
Features
- Meets or Exceeds MIL-STD 810G—that means you are assured of performance & quality
- IP67 rating ensures your devices stay dry no matter what weather
- Standard shock absorbers suitable for payload range of 18 to 68 kg with extra shock absorber kits available to extended payload up to 136kg if added weight is needed
- Roto-molded shell ensures industry leading strength & impact resistance
- Molded in stacking ribs and lugs are designed to stack with competitive manufacturers cases
- Black powder coated stainless steel latches are recessed for protection & durability
- A built-in pressure relief valve helps to maintain an ideal environment at any altitude
- Never lose your lid again—the case housing has convenient lid hangers
- Coupling straps provide efficient & secure transport
- 4 comfort grip & spring loaded lift handles
- Standard 19″ Rack width per ANSI/EIA-310-C
- Square hold rack rails to accommodate either #10-32 US standard, or 6mm international standard cage nuts
- Lifetime warranty
- Available from 3U to 14U models
