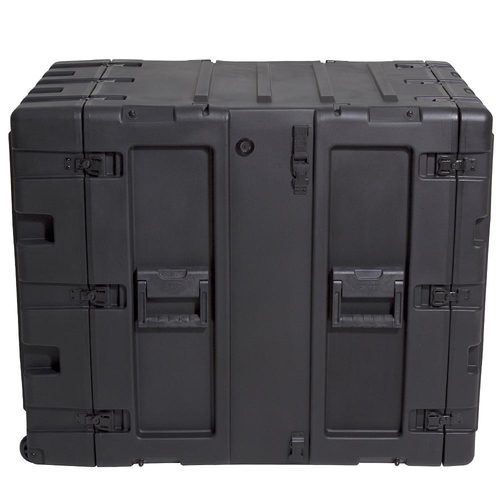

SKB 3RR-14U24-25B - 24 Inch Deep Removable Shock Rack Case - 14U

SKB 3RR-14U24-25B - 24 Inch Deep Removable Shock Rack Case - 14U

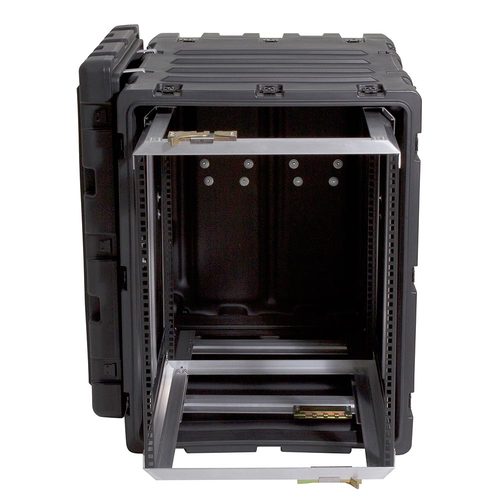

The SKB 3RR 24 Inch Deep Removable Shock Rack Cases have an interior which features a removable rack with a patent pending 'positive lock' latching system that slides open like a file drawer, allowing full access to racked equipment. The interior rack is also completely removable allowing complete frame access for bench integration.

Moulded of LMDP Linear Medium Density Polyethylene plastic that meets or exceed MIL-STD 810G standard, the cases are fitted with square-hole rack rails to accommodate either #10-32 US standard or 6mm International standard cage nuts which are supplied with the cases.

The 2” deep front lid and 5” deep rear lid accommodate rack gear that is longer than 24”.

Features of the 3RR-14U24-25B

• Roto-moulded for strength and durability
• Lightweight, shockproof, watertight, dustproof, heat and chemical resistant
• Recessed black powder coated stainless steel latches
• 8 comfort grip spring loaded lift handles
• Automatic pressure relief valve
• Fitted with 8 adjustable elastomer shock absorbers
• Coupling straps are included for securing the racks together when stacked
• Edge casters for convenient case transport
• Gasket sealed lids include lid hangers to store your lids when your kit is in use
• Moulded-in stacking ribs and lugs are designed to stack with competitive manufacturers cases
• Rackmount clips and self-tapping screws included for secure mounting front or rear (4 screws per 1U)
• Load capacity up to 68kgs (150lbs) - order the additional 3SKB-SA Shock Absorber Kit for weights up to 136kgs (300lbs)

Specifications

• Interior W x H 483 x 622 mm 19" x 24.5"
• Exterior W x H x D 605 x 786 x 992 x mm 24" x 31" x 39"
• Rackable Depth (Front rail to back rail) 610 mm 24"
• Depth (Front rail to back lid) 737 mm 29"
• Product Weight 41.73 kg 92 lb
• U Size 14U
• IP Rating IP67
